| Place of Origin: | BAGEASE.CN |
| Brand Name: | BAGPLASTICS@VIP.163.COM |
| Certification: | ISO 9001:2000, FDA, HACCP, SGS, EN13432 |
| Model Number: | WHATSAPP: 008613780964661 |
| Minimum Order Quantity: | 1000pieces Skype: mydearneil |
|---|---|
| Price: | Negotiable BAGPLASTICS@YAHOO.COM |
| Packaging Details: | 2000PCS/CARTON |
| Delivery Time: | 15 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1 MILLION PER MONTH |
| Ground Cover: | Mulch Film | Greenhouse Cover Film: | Aluminum Foil Bubble Film |
|---|---|---|---|
| Mylar Film Coated Woven Plastic Fabric: | Blackout Canvas Film | Metalized PET PE Laminated Film: | Reflective Mylar Film |
| Black And White Panda Film: | Clear PET Or PE Film | Aluminum Plastic Woven Fabric: | Air Bubble Double Foil Insulation |
| VMBOPP Metalized BOPP Film: | VMPET Metalized PET Film | VMPE Metalized PE Film: | Agricultural Plastic Film |
| Hydroponic Reflective & Insulation Film: | Industrial Metalized Film | Construction Film: | Bubble Foil Insulation |
| EPE Foam Insulation: | XPE Foam Insulation | Foil Fiberglass Cloth: | FSK- Foil Scrim Kraft |
| Foil Woven CLoth: | Pure Aluminum Foil | Metalized Aluminum Foil: | Stretch Film |
| Wine Skin Bag: | Air Inflatable Column Bag | Bubble Envelope Mailer: | Bubble Film |
| Bubble Bag: | Building Insulation Material | Radiant Barrier & Building Sarking: | Lamination Aluminum Foil |
| Multi Layers Foil Insulation: | Swimming Pool Solar Cover | Concrete Curing Blanket: | Blanket |
| Construction Builder Film: | PONDS LINER | Geomembrane: | PVC Geomembrane |
| Waterproof Or Drainage Material: | Drainage Geonet | Plastic Drainage Board: | Geocell |
| Geogrid: | Fiberglass Geogrid | Uniaxial Geogrid: | Polyester Mining Geogrid |
| PP/PET Welded Geogrid: | Biaxial Stretch Plastic Geogrid | Composite Geomembrane: | Rough Surface Geomembrane |
| Smooth Surface Geomembrane: | Geotextile | ||
| High Light: | Road Building Glass Fiber Geogrid,Fiberglass Biaxial Geogrid,Soil Stabilization Glass Fiber Geogrid |
||

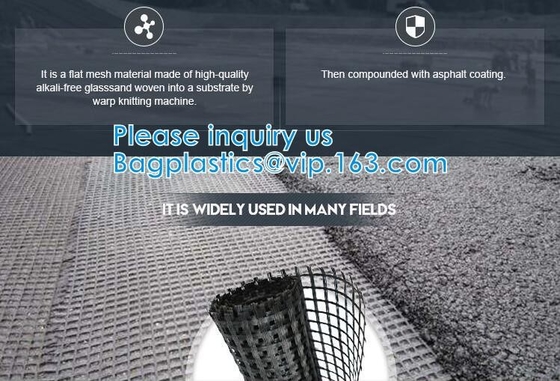

Fiber Geogrid For Road Building Construction Fiberglass Biaxial Geogrid With Nonwoven Geotextile Soil Stabilization
Please inquiry us
Bagplastics@vip.163.com
Please inquiry us
Bagplastics@vip.163.com
Mesh size: 25.4*25.4mm
Elongation: ≤15%
Covering rate: ≥20%
Roll width: 1-6m
Roll length: 30-100m
Polyester warp knitted geogrid technical datas
| Specs | Tensile strength (kN/m) | Mesh size (mm) | Elongation (%) | Covering rate (%) | |
| MD | CD | ||||
| TGSG30×30 | ≥30 | ≥30 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG50×50 | ≥50 | ≥50 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG80×80 | ≥80 | ≥80 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG100×100 | ≥100 | ≥100 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG120×120 | ≥120 | ≥120 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG150×150 | ≥150 | ≥150 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG180×180 | ≥180 | ≥180 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG200×200 | ≥200 | ≥200 | 25. 4×25.4 | ≤15 | ≥20 |
| TGSG260×260 | ≥260 | ≥260 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG300×300 | ≥300 | ≥300 | 25.4×25.4 | ≤15 | ≥20 |

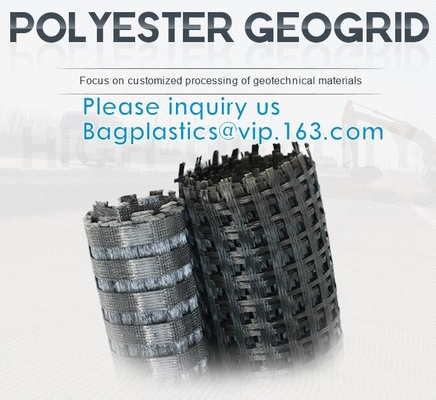

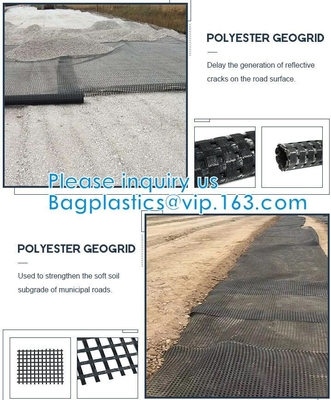

Polyester Biaxial Geogrid
Polyester uniaxial geogrid
Material: 100% real carbon fiber
Tow size: 12k T700
Grade: A
tensile strength: more than 4900MPa
tensile modulus: more than 240GPa
Width: 1 meter
Length: 10 meters
Grid size: 5mmx5mm ,10mmx10mm or Customized
Thickness: about0.25mm/0.28mm
Packing: roll on tube and packed with carton.
If you want 20m , 30m..., it will come in one piece.

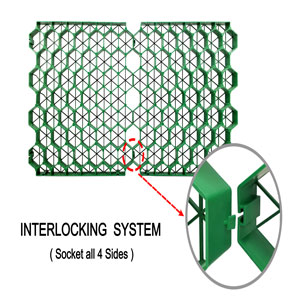

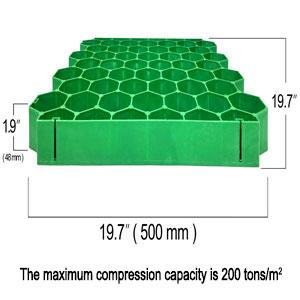

Plastic grass paving grid is made from PP or HDPE (high-molecular polyethylene) with fiber and age resistor, using high pressure to inject plastic to form bee nest-like shaped shell, with stereo space and support level. It’s widely used in the parking lot, fire exit, fire climbing surface, pavement etc. Since it can protect the grass, it is also known as the green grass protection mat.
|
|
|
|
|
|---|---|---|---|
|
* Emergency grass access roads. |
* Residantial access and parking spaces. |
* Grass Parking Lots. |
Please inquiry us
Bagplastics@vip.163.com |
Plastic Hdpe Cellular Textured Gravel Stabilizer Typar Geocell Recycled Plastic Pavers Textured Perforated Driveway
Please inquiry us
Bagplastics@vip.163.com
Waterproof or drainage material
Drainage Geonet
Plastic drainage board
Geocell
geogrid
Fiberglass Geogrid
uniaxial geogrid
Polyester mining geogrid
PP/PET welded geogrid
Biaxial Stretch Plastic Geogrid
Geomembrane
PVC Geomembrane
Composite geomembrane
Rough surface geomembrane
Smooth surface geomembrane
Geotextile
Geocell is made of a new type of high-strength geosynthetics, which is popular with both domestic and abroad, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Please inquiry us
Bagplastics@vip.163.com
Easily folding and convenient for transportation.
When be in construction, the geocell can be pull into a network and launched into a three-dimensional honeycomb grid. As it filled in soil, macadam, concrete or other granular materials, constituted to be a construction, which has strong sidewise restraint and high rate of stiffness.
Please inquiry us
Bagplastics@vip.163.com
Product Function
1.To stable the roadbed of railway.
2.To stable the roadbed of highroad.
3.To bear the load of dike or retaining wall.
4.To the improvement of shallow riverway.
5.To support the pipeline and sewer.
6.For the prevention of landslide by useing geocell as a heavy-duty hybrid force retaining wall.
7.To be used as independent wall, wharf and breakwater, etc.
8.For the desert, beaches and the riverbed, the river bank`s regulation.
| Material Properties | Unit | Test Method | |||||||
| Cell Depth | mm | 75 | 100 | 150 | 200 | ||||
| Polymer Density | g/cm3 | 0.935-0.965 | ASTM D 1505 | ||||||
| Enviromental Stress Crack Resistance | Hours | >400 | ASTM D 5397 | ||||||
| Enviromental Stress Crack Resistance | Hours | 6000 | ASTM D 1693 | ||||||
| Carbon Black Content | % | >1.5 | ASTM D 1603 | ||||||
| Nominal Sheet Thickness Before Texturing | mm | 1.27 -5%,+10% | ASTM D 5199 | ||||||
| Nominal Sheet Thickness After Texturing | mm | 1.52-5%,+10% | ASTM D 5199 | ||||||
| Strip Puncture Resistance | N | 450 Please inquiry us Bagplastics@vip.163.com |
ASTM D 4833 | ||||||
| Seam Peel Strength | N | 1065 | 1420 | 2130 | 2840 | EN ISO13426-1B | |||
| Seam Efficiency | % | 100 | GRI-GS13 | ||||||
| Nominal Expanded Cell Size (width x length) | mm | 320x287,475x508 etc | Please inquiry us Bagplastics@vip.163.com |
||||||
| Nominal Expanded Panel Size (width x length) | m | 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44 | Please inquiry us Bagplastics@vip.163.com |
||||||
gravel stabilizer gravel grids hdpe geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technics .It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils,granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides. Please inquiry us
Bagplastics@vip.163.com
1, retractable and transport can be shrunk and stacked, the construction can be mesh, fill in the dirt, gravel, concrete and other loose material, with strong lateral restrictions and the stiffness of the structure.
2, light material, abrasion resistance, stable chemical properties, photooxidation aging, acid and alkali, applicable to different soil and desert soil conditions.
3, high lateral limit and non slip, anti deformation, effectively enhance the bearing capacity of the subgrade and dispersion load.
4, change the geocell height, welding geometric size can meet the needs of different projects.
5, flexible, small volume, convenient connection, fast construction speed.
Please inquiry us
Bagplastics@vip.163.com
1, for the stability of highway, railway subgrade.
2, used to bear the gravity of the embankment and shallow river management.
3, to prevent the landslide and the gravity of the mixed retaining wall.
4, in the face of soft foundation. The use of geotechnical grid can greatly reduce the labor intensity of construction, reduce the construction speed of subgrade thickness, good performance, greatly reduce the cost of the project.
ngravel stabilizer gravel grids HDPE geocell recycled plastic pavers Specification
|
Height (mm) |
Welding distance (mm) |
Sheet thickness(mm) | Tensile yielding strength of the cell≥(MPa) | Seam peel strength≥(N) | ||
| smooth | textured | |||||
| TGLG-50-400 | 50 | 400 | 1-1.1 | 1.4-1.5 | 20 | 500 |
| TGLG-100-400 | 100 | 400 | 1-1.1 | 1.4-1.5 | 20 | 1000 |
| TGLG-150-400 | 150 | 400 | 1-1.1 | 1.4-1.5 | 20 | 1500 |
| TGLG-200-400 | 200 | 400 | 1-1.1 | 1.4-1.5 | 20 | 2000 |
| TGLG-75-330 | 75 | 330 | 1-1.1 | 1.4-1.5 | 20 | 750 |
| TGLG-100-330 | 100 | 330 | 1-1.1 | 1.4-1.5 | 20 | 1000 |
| TGLG-150-330 | 150 | 330 | 1-1.1 | 1.4-1.5 | 20 | 1500 |
| TGLG-200-330 | 200 | 300 | 1-1.1 | 1.4-1.5 | 20 | 2000 |
Please inquiry us
Bagplastics@vip.163.com
