pet double sided adhesive tape with red mopp film has high temperature resistance,TapeMM Painters Polyester Silicone Painter

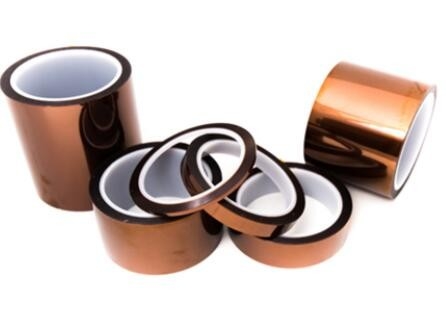

Polyimide film, single sided coated with high-temp resistant silicone adhesive.
Please inquiry us
Bagplastics@vip.163.com
Product composition:
|
→ kapton film/polyimide tape
|
|
→silicone pressure sensitive adhesive
|
Physical Parameter
| Item | Unit | Specification | Test methods | Notes |
| color | amber | Visual assessment | ||
| Backing thickness | mm | 0.025 | ASTM D-3652 | ±0.001mm |
| Total thickness | mm | 0.065 | ASTM D-3652 | ±0.002mm |
| Peeling strength | N/25mm | 4.5~7.0 | ASTM D-3330 | |
| Tensile strength | N/25mm | ≥115 | ASTM D-3759 | |
| Elongation at break | % | ≥35 | ASTM D-3759 | |
| Breakdown voltage | KV | ≥5 | ||
| Heat resistance | 30min | 260centigrade | ||
| length | m | 33 | ||
| width | Mm | 2~500 |
Product Features:
With high electrical strength, heat resistance, high adhesive, class H insulation anti-corrosion, soft and tender, no residue after peeling off.
Please inquiry us
Bagplastics@vip.163.com
Application ideals:
Ideal for switch.motor .relay.cable.coils.capacitance and lithium battery.SMT.transformer fabrication and so on.
| Polyimide tape listing | ||||
| Model No | Thickness (mm) | Width (mm) |
Length (m) |
resistance temperature |
| ZH-PI265 | 0.065 | 2-500 | 33 | 260(°C) |
| ZH-PI265P | 0.065 | 2-500 | 33 | 300(°C) |
| ZH-PIE265(anti- static) | 0.065 | 2-500 | 33 | 260(°C) |
| ZH-PI590 | 0.08 | 2-500 | 33 | 260(°C) |
| ZH-PI712 | 0.115 | 2-500 | 33 | 260(°C) |
| ZH-PI1217 | 0.165 | 2-500 | 33 | 260(°C) |
| ZH-PI2025 | 0.25 | 2-500 | 10 | 260(°C) |
Please inquiry us
Bagplastics@vip.163.com
Storage condition and Shelf life:
The product should be stored in the ambient temperature, in the 20~80%RH.
You can obtain the best properties within 12 months after product date.
